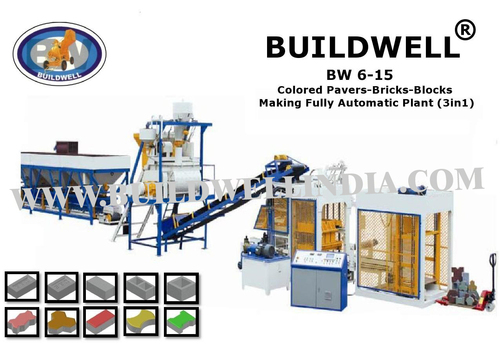

Automatic Paver Block Making Machine

<<Previous

Send Inquiry

Product Code : BW 6-15

Brand Name : BUILDWELL

Product Description

Our company is deemed as one of the leading manufacturers and exporters of tough built Automatic Paver Block Making Machine. Our offered machine is engineered using innovative techniques and machinery in order to meet the international quality standards. As per the demands of clients, this machine is designed into various grades and models. This machine is widely used in the construction applications. To ensure flawlessness, this Automatic Paver Block Making Machine is stringently checked on criterion like functioning.

Various attributes:

Less maintenance
Superior finish
Excellent performance
Easy usage

Other information:

TECHNICAL SPECIFICATION OF BW- 6-15(BRICK-BLOCK AND PAVER)
Electric Power		Labour
Main Press 24 HP		Skilled	2 Nos.
Vibrators	10 HP. 3 PH X 2 NOS.
Feeder	3 HP, 3 PH	Un Skilled	12 Nos.
Palate	1 HP, 3 PH	Production Capacity	37,800 Bricks / shift
Power Pack	15 HP, 3 PH
Block Conveyor	1 HP + 0.25 HP, 3 PH	Shed Size	40' X 100'
Stacker UP Or Down – PW-BW	2HP + 2HP, 3PH
Conveyor	3 HP, 3PH	Land Require	3 Acer
Pan Mixer	25 HP 3PH
Batching With Compressor	12.5 HP , 3PH
Cement Silo, Fly Ash Silo,	12.5 HP , 3PH
Screw Conveyor	12.5 HP , 3PH
Total HP	100 HP
Item	Size ( L X W X H )	Pcs./ Mould	Pcs./ Shift
Block	400 X 200 X 200 mm	6	10800
Bricks	230 X 110 X 75 mm	21	37, 800
Uni Pavers		15	27000

Block	400 X 200 X 150 mm	8	14400
